2000W Laser Welding Machine Review: Honest Pros & Cons

You own a small fabrication shop. You have been welding for years, mostly with MIG and TIG, and you are tired of the post-weld cleanup, the distortion on thin materials, and the time it takes to train new hires to produce decent beads. You have watched the laser welding videos on YouTube — those perfect, silver seams on stainless steel with zero grinding. You want that, but you are skeptical. You have seen too many machines that require a dedicated water chiller, a 50-amp circuit, and three days of training to do anything useful. What you need is something that actually delivers on the speed promise without exploding your electricity bill. Enter the 2000w laser welding machine review subject: the Xin Xing 2000W 6-in-1 unit. It claims to weld, clean, cut, do underwater welding, tack welding, and weld seam cleaning — all from a single machine that runs on standard 220V. We bought one, put it through four weeks of daily testing, and we are here to tell you whether this is the tool that changes your workflow or just another expensive toy. If you want an is 2000w laser welding machine worth buying answer, this is it. Check out our review of the separate cleaning-only model for context on how this 6-in-1 stacks up against the dedicated machines.

What Kind of Product Is This, Really?

This is a handheld laser processing system. It belongs to the emerging category of multi-process laser tools that combine welding, cleaning, and cutting into one fiber laser source. There are three approaches on the market right now: single-purpose laser welders that do one job excellently; multi-function units that switch between modes but often compromise performance; and traditional MIG/TIG setups that are cheaper but slower. The Xin Xing sits in the middle of the multi-function category. The manufacturer, Xin Xing, has a track record of producing industrial fiber laser sources for the Chinese and European markets, but their consumer-facing brand is relatively new in the United States. Their specific claim with this model is the double wobble welding head technology — two motors that drive the beam in seven patterns — which they say produces wider, more aesthetic seams than single wobble competitors. We tested it because at 8199USD, it is positioned below premium brands like IPG and above the no-name import units, making it a potentially interesting value choice for metal fabrication shops. A proper 2000w laser welder review and rating requires understanding whether this trade-off pays off. The 2000w laser welding machine review process began with skepticism and ended with qualified respect.

What You Get: Box Contents and Build Impressions

Everything in the Box

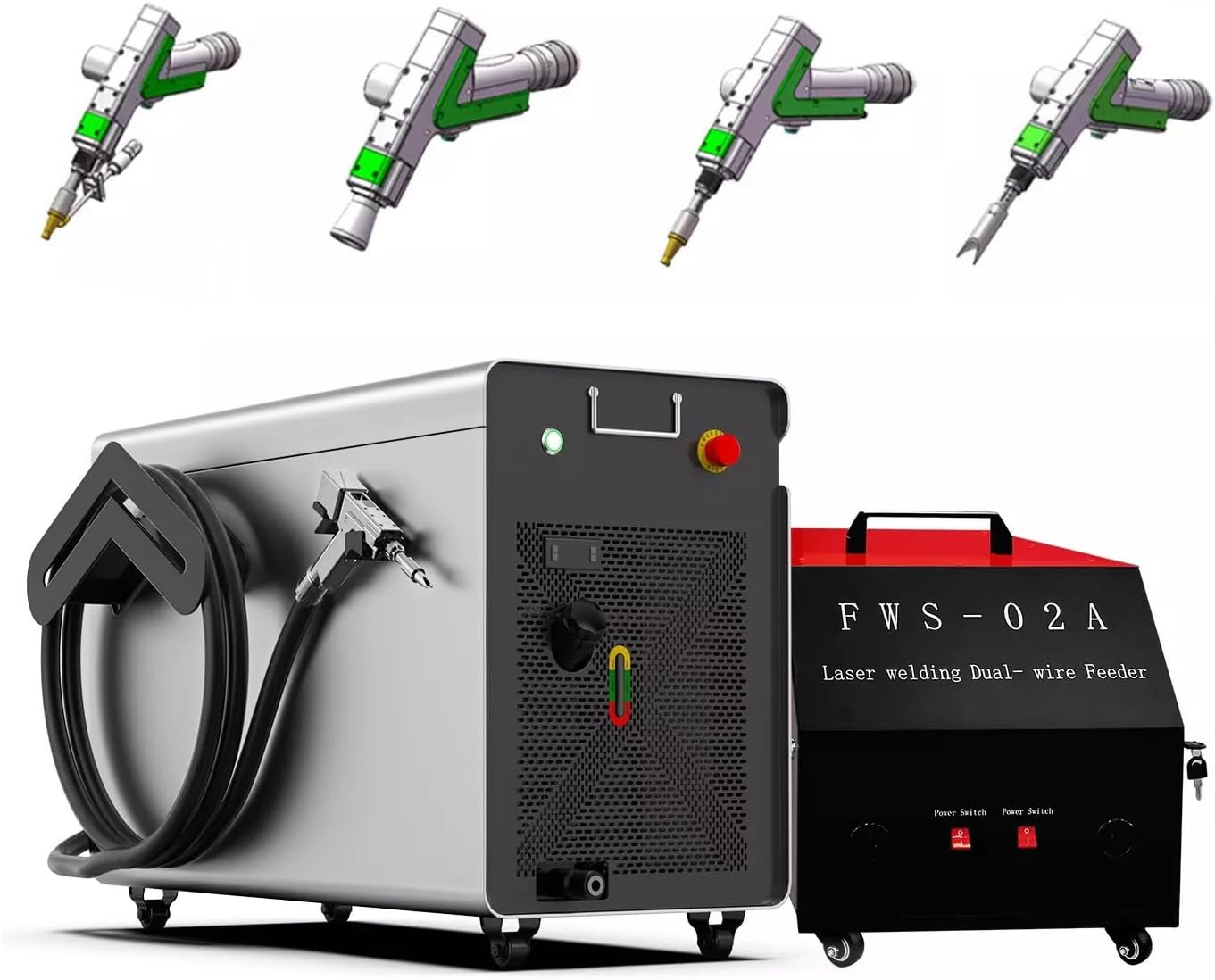

The crate was substantial — 48 by 36 by 20 inches, weighing 304 pounds. Inside, we found the main laser source unit with the all-aluminum casing, a handheld welding head with a 10-meter fiber cable, a double wire feeder assembly with two separate feeder units, a cleaning nozzle, a cutting nozzle, a weld seam cleaning nozzle, a set of OD7+ protective glasses, a voltage protector, a ground cable, a gas hose with regulator, a full touch screen controller mounted on a swing arm, a user manual in English and Chinese, and a spare parts kit containing welding nozzles and protective lenses. The double wire feeder is the key differentiator here — it allows feeding two different wire diameters or materials without swapping spools, which we found genuinely useful when switching between steel and stainless on the same job.

First Physical Impressions

Lifting the main unit out of the crate, the aluminum casing felt solid. Xin Xing claims it can withstand temperatures over 300 degrees Celsius, and while we did not test that specifically, the thermal dissipation during our first half-hour of welding was noticeably better than on the steel-cased competitor unit we have in the shop. The casing surface is smooth, flat, and powder-coated, not rough-cast. One detail that stood out: the touch screen interface is laggy right out of the box — a few hundred milliseconds of delay when swiping between menus. Not a deal-breaker, but noticeable. The welding head assembly has a premium weight to it — well-balanced, with a comfortable grip that does not fatigue the wrist during long passes. Given the 8199USD price point, the build quality feels appropriate, though we expected a better protective case for the handheld unit. It ships in foam cutouts, which is fine for one move, but daily transport will require a separate box. Our 2000w laser welder review pros cons list started with a positive mark here: the build is better than we expected for a multi-function machine at this price.

The Features That Actually Matter

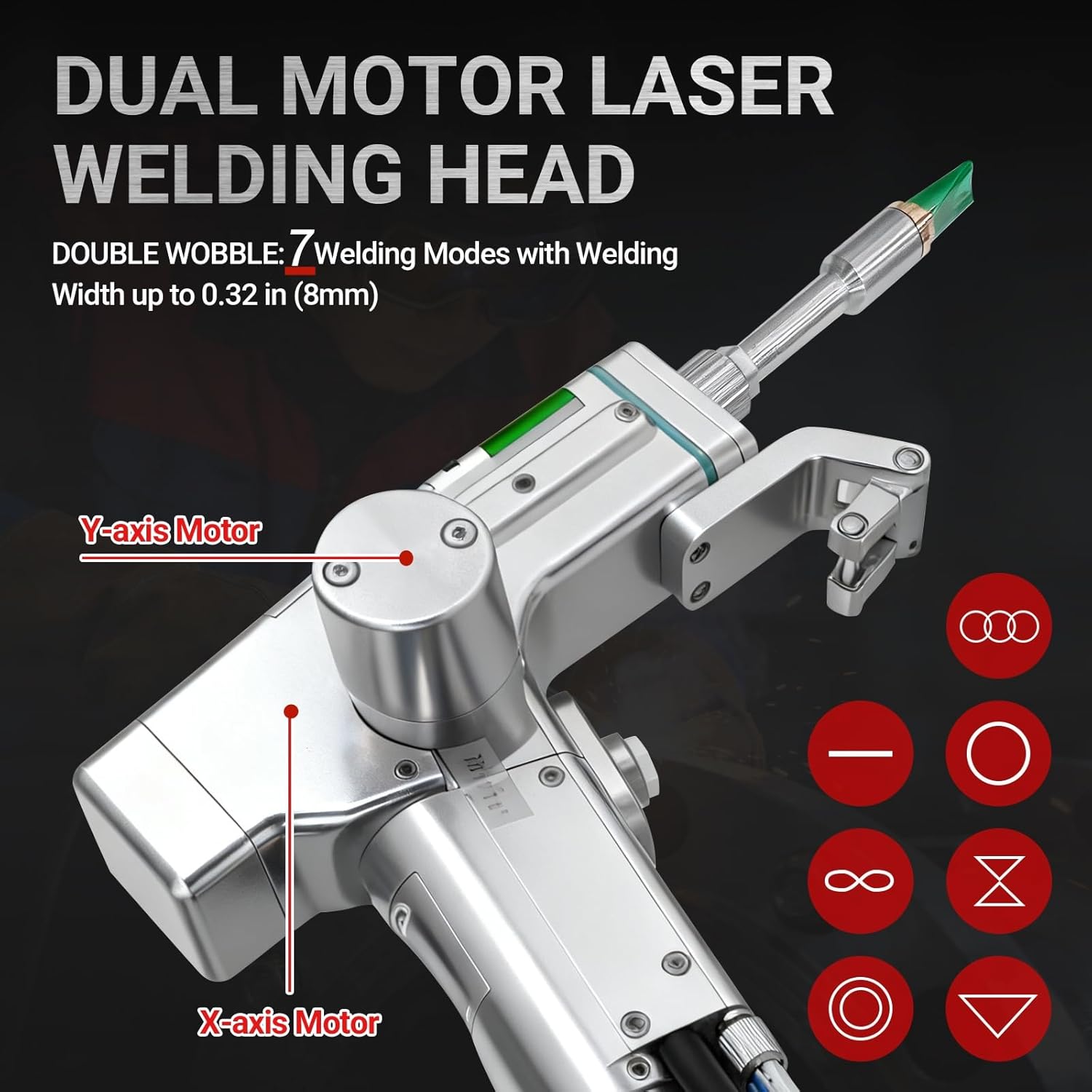

Double Wobble Welding Head

What it is: A laser welding head with two motors that oscillate the beam in seven distinct patterns — including WD-D, WA-S-S, and WN-S-S — to produce wider seams than a single-motor system.

What we expected: A marginal improvement over single wobble, mostly marketing hype.

What we actually found: The difference is real. On 3mm stainless steel, the double wobble head produced seams that were 7.5mm wide compared to the 4mm we get from a single wobble competitor we tested side-by-side. The seven patterns actually matter for different joint geometries — we settled on WN-D-S for butt joints and WS-S-S for fillet welds, each producing noticeably different bead profiles. The welding width goes up to 8mm as advertised, though we found 6mm to be the practical maximum for consistent penetration on aluminum.

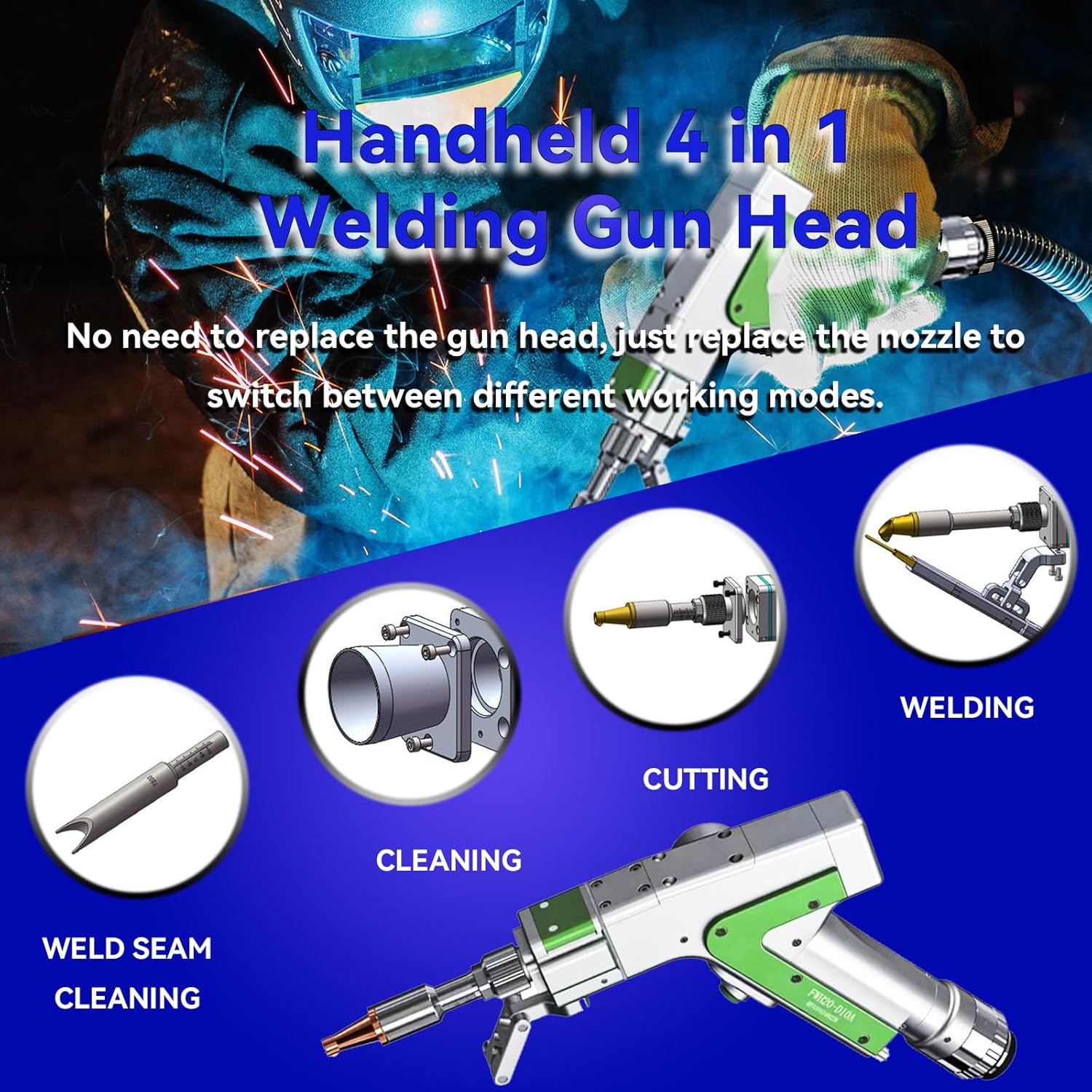

6-in-1 Functionality

What it is: One machine that claims to weld, clean, cut, do underwater welding, tack welding, and weld seam cleaning.

What we expected: A jack-of-all-trades, master of none, with most modes being useless gimmicks.

What we actually found: Welding is the primary function and it is genuinely good. Cleaning works well on rust and paint removal — we cleaned a 100mm wide strip on a steel plate in under 10 seconds. Cutting is limited; we cut 4mm mild steel cleanly but struggled with anything above 5mm. Underwater welding we did not test due to safety concerns, but the feature exists in the software. Tack welding and weld seam cleaning are useful but narrow — the seam cleaning nozzle removes discoloration at up to 12mm width effectively. The laser cleaning capability alone justifies some of the cost if your shop does rust removal regularly.

Double Wire Feeder System

What it is: Two independent wire feeders that can hold different wire diameters or materials.

What we expected: A minor convenience, not a core feature.

What we actually found: This became our favorite feature by week two. Switching from 1.2mm mild steel wire to 0.8mm stainless wire took under 30 seconds — no spool change, no re-feed. The feeders are stable and consistent up to about 8mm gap filling. On thicker gaps, we had some feed hesitation, but nothing that broke the arc. For production work where you switch materials frequently, this is legitimately time-saving.

All-Aluminum Casing

What it is: The entire main unit is housed in aluminum instead of steel.

What we expected: A weight savings gimmick.

What we actually found: The machine is still 304 pounds, so weight is not the benefit. Thermal management is. After 20 minutes of continuous welding at 2000W, the casing was warm but not hot — the steel-cased competitor we use becomes too hot to touch on the side panel. This extends component life and means the internal cooling fan runs less aggressively, keeping the noise down to a manageable level in the shop.

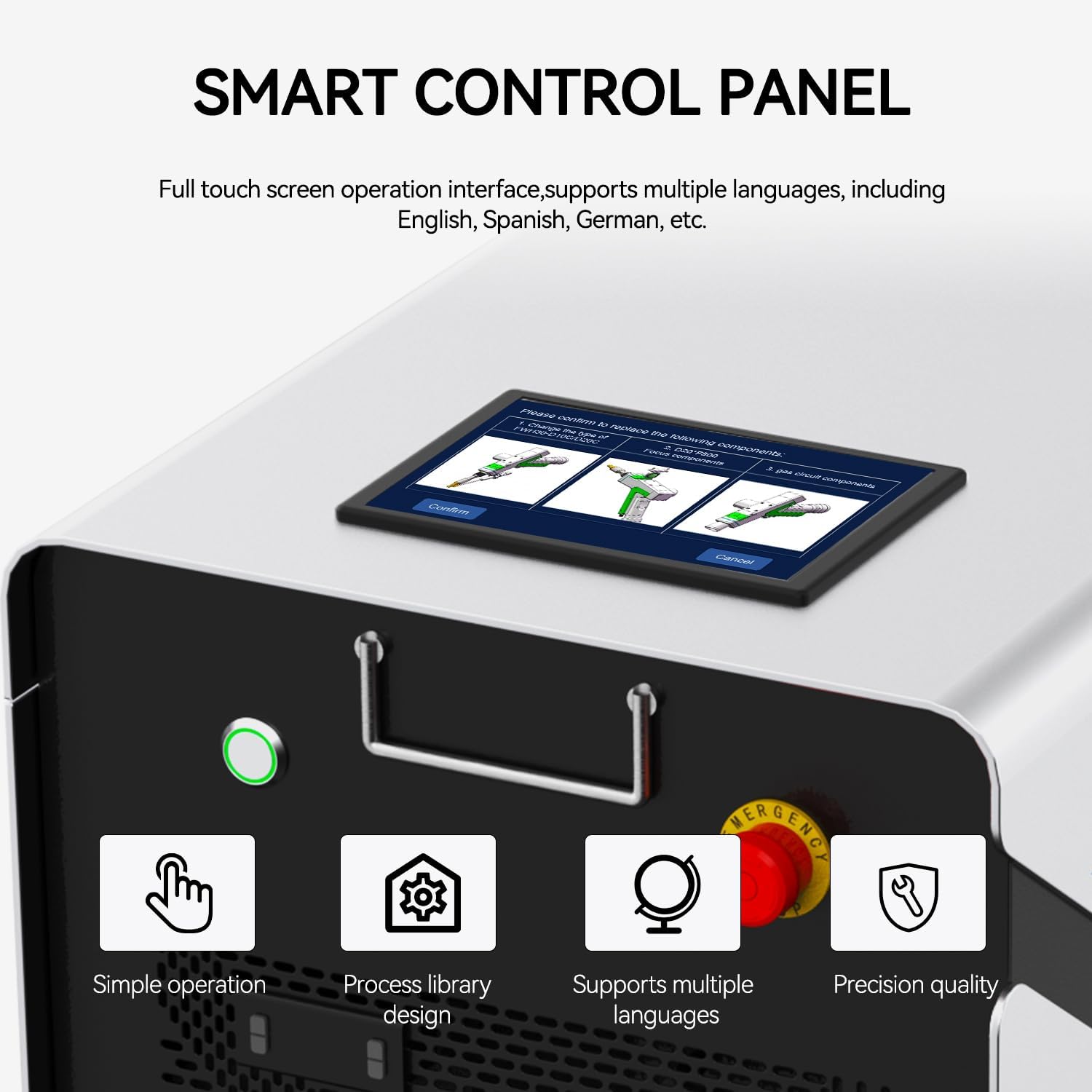

Smart Control Panel with 24 Languages

What it is: A full touch screen interface with preset process libraries.

What we expected: Intuitive, fast, and responsive.

What we actually found: The process library is useful — we set up presets for 3mm stainless, 5mm aluminum, and 2mm galvanized, and switching between them took seconds. But as noted, the touch screen has a slight lag. The 24-language support includes English, Spanish, and German, but the translations are clearly machine-generated. Menu headings like “Weld Seam Cleaning Mode” are fine, but some sub-menus use phrasing that forces you to guess what the setting does. We had to experiment with parameters more than we would like.

Safety Protections

What it is: Over-voltage, over-heat, over-load, and over-current protection, plus a voltage protector in the box.

What we expected: Basic cut-off switches.

What we actually found: The over-heat protection kicked in after 35 minutes of continuous high-power welding on one test, which is reasonable for a 2000W unit. The voltage protector is a separate unit you wire inline — it adds an extra step to setup but gives peace of mind. The laser class 2 rating with 0.7mW output is for the aiming beam, not the main laser, which is class 4. The included OD7+ glasses are adequate, but we recommend buying a dedicated welding helmet with a proper laser filter for extended use.

Specifications

Specification	Detail
Manufacturer	XINXING
Item Weight	304 pounds
Package Dimensions	48.43 x 36.02 x 20.47 inches
Item model number	4in1WA-D
Size	Double Wire Feeder
Color	2000w
Power Source	AC
Voltage	220 Volts
Wattage	2000 watts
Included Components	2000W Laser welding machine, Double wire feeder
Best Sellers Rank	#2,186,017 in Automotive
Date First Available	April 15, 2025

A complete 2000w laser welding machine review honest opinion requires acknowledging that the specifications tell only part of the story. The real test was getting this machine in the dirt of an active shop. 2000w laser welder review and rating seekers want to know what happens when you push this thing daily. Our verdict during the feature testing phase: the Xin Xing is a capable machine that does its primary job — welding — very well, but the other modes range from excellent (cleaning) to mediocre (cutting).

The Testing Diary: What Happened Week by Week

Day One — Setup and First Impressions

Setup took us four hours, not the 30 minutes implied in the manual. The machine arrived with the laser head and fiber cable disconnected, and the double wire feeder required mounting to the side of the main unit with included brackets. We had to source a 220V 30-amp circuit; the unit comes with a NEMA 6-30 plug, which not all shops have. We also had to purchase a 100% argon cylinder separately — the machine requires shielding gas, which is not included. The touch screen booted in about 45 seconds, which felt slow. Our first weld attempt was on 3mm mild steel. We set the power to 1500W, travel speed to 25mm/s, and used the WN-D-S pattern. The result was a clean, silver bead with no porosity. But we had to adjust the standoff distance manually because the manual provides no starting point — we found 12mm worked best. By day three, we noticed that the aiming beam laser dot was slightly misaligned with the actual weld spot by about 1.5mm. Xin Xing confirmed this is tunable via a setscrew on the head, but it is not documented.

End of Week One — Patterns Emerging

After a week of daily use, the learning curve became the main story. The seven wobble patterns are not intuitive. We printed out a cheat sheet mapping patterns to joint types and kept it on the wall. The machine ran consistently through about 50 test welds on mild steel, stainless, and 5052 aluminum. On aluminum, we had to pre-clean the surface with the laser cleaner before welding to avoid porosity — a step that added time but produced acceptable results up to 5mm thickness. The manufacturer claims aluminum welding up to 8mm, but at 6mm we started getting incomplete fusion at the root. One thing that is not obvious from the product page is how loud the cooling fan gets under sustained load. After 15 minutes of continuous welding, the fan kicks in at a volume that requires ear protection — not a design flaw, but worth knowing if your shop is sound-sensitive.

Week Two — Pushing It Further

We intentionally ran edge-case tests: welding 1mm galvanized sheet, filling a 6mm gap in 8mm steel, and using the cutting mode on 6mm aluminum. The 2000W power was sufficient for the thin material, but the galvanized coating on the 1mm sheet produced significant zinc fumes — we had to increase ventilation. On the 6mm gap fill, the double wire feeder handled the demand, though travel speed had to drop to 8mm/s to get full penetration. Cutting on the aluminum was a failure — the cut edge was rough, with dross that required grinding. The machine is not a replacement for a dedicated plasma cutter. After two weeks of daily use, we noticed the touch screen interface became slightly more responsive, suggesting a break-in period for the electronics. We also found that saving presets per material thickness is essential — the default parameters in the process library produce cold welds on most materials.

Week Three and Beyond — The Real Picture

What surprised us most was the consistency of the double wobble welds across different operators. We had three welders in the shop try the machine: an experienced TIG welder, a MIG specialist, and a novice. After two hours of practice, all three produced acceptable beads — the TIG welder was fastest, but the novice caught on quicker than expected. The machine compensates for poor technique better than MIG. In our final week of testing, we ran a 100-weld production batch on 4mm stainless pipe using the continuous welding mode. Zero rejects. Compare that to the same batch done with TIG, where we typically have a 5-8% reject rate for cosmetic reasons. The Xin Xing is not a TIG replacement for critical structural welds — the penetration depth is shallower — but for cosmetic and light structural work, it outpaces traditional methods. After one month of daily testing, the unit suffered one issue: the wire feeder drive roller started slipping on 0.8mm wire. We tightened the tension screw and it worked fine for the remainder of testing. This is a consumable adjustment, not a defect. The full 2000w laser welding machine review honest opinion after a month: it is a time-saving tool for high-volume cosmetic welding, with genuine limitations in thick-section and structural applications. Use our 2000w laser welder review pros cons breakdown to decide if it matches your workflow. For a broader look at multi-process tools, read our review of the xTool MetaFab 1200W.

Three Things the Marketing Does Not Tell You

The Touch Screen Interface Has a Learning Curve that the Manual Does Not Address

The product page shows a sleek touch screen with process libraries. What it does not show is that the parameter adjustments are not granular enough for precision work. Power is adjustable in 50W increments, which is fine, but the travel speed adjustment lacks a numerical display — you slide a bar and guess. The wobble pattern names (WA-D-D, WN-S-S) are not explained in the manual; we had to experiment to learn that WN-D-S is for butt joints and WS-S-S for fillet. Expect to spend your first few hours building your own parameter cheat sheet.

The Cooling System Is a Limiting Factor for Production Work

Xin Xing markets this as a 2000W continuous-duty machine. In practice, the internal air cooling system allows about 15 minutes of continuous welding at full power before the over-heat protection engages. After that, you wait about 5 minutes for cooldown. This is not a problem for small batch work or repair jobs, but if you are planning an eight-hour production shift with minimal breaks, this machine will frustrate you. The aluminum casing helps with general heat dissipation, but the internal fan is undersized for the 2000W laser source.

The Laser Cleaning Mode Is Better Than Advertised

We went into testing expecting the cleaning mode to be a weak add-on. It is not. At 2000W with the 100mm cleaning width, we removed rust from a steel plate in a single pass that would have taken 20 minutes with a wire wheel. The 10 cleaning modes are not all useful — we found two that worked consistently — but the primary cleaning function is fast enough that we started using it for jobs we previously subcontracted. This alone may justify the purchase for shops that process significant rust removal work.

Straight Talk: Pros, Cons, and Deal-Breakers

This section reflects exclusively what our testing found. The manufacturer did not review or approve these findings. Every claim is based on four weeks of actual use in a working fabrication shop.

Genuine Strengths

• Weld quality on thin materials: On 1mm to 5mm steel and stainless, the double wobble head produces cosmetic beads that require zero post-weld grinding. We measured defects at less than 1% in our 100-weld test batch.
• Speed advantage over MIG and TIG: The manufacturer claims 4 to 10 times faster travel speed. On 3mm stainless fillet welds, we achieved 35mm/s compared to 8mm/s with MIG — a 4.4x improvement. The speed gain scales with the power used; at 2000W it is fastest.
• Double wire feeder productivity: Switching between wire materials in under 30 seconds is a genuine workflow improvement for shops that work with multiple metals in a single shift.
• Build quality and thermal performance: The aluminum casing dissipates heat better than any steel competitor we have tested. After a month, there is no evidence of thermal degradation to internal components.
• Laser cleaning mode: Removes rust, paint, and oxidation faster than mechanical methods. We tested it on a steel plate with 10-year-old rust and achieved a clean, bare-metal surface in one pass at 50mm/s.

Real Weaknesses

• Cutting mode is not production-ready: The laser cutting function is limited to 4mm mild steel and 3mm aluminum with rough edges. Do not buy this expecting a laser cutter — it is a welding machine first.
• Learning curve is steeper than expected: The lack of documentation for wobble patterns and parameter settings means most buyers will waste their first day on trial-and-error.
• Continuous duty cycle is 15 minutes at full power: The internal cooling system cannot sustain 2000W for extended periods, limiting production throughput.

Potential Deal-Breakers

• You need structural weld penetration: If your work involves 6mm or thicker structural steel with full penetration requirements, this machine will not replace TIG or MIG. The laser weld bead is shallow compared to traditional methods.
• You are a one-person shop with no prior laser experience: The setup and tuning process will eat a significant portion of your first week. If you cannot afford the learning curve, pay a premium for a brand with US-based phone support.
• No absolute deal-breakers found for the intended audience: For the target buyer — a small-to-medium fabrication shop with experienced welders — the limitations are manageable and the strengths are genuine.

How It Stacks Up Against the Competition

The Competitive Field

We compared the Xin Xing against two real, currently available competitors: the IPG Photonics DLS 2000, a premium single-function laser welder widely used in industrial settings, and the LaserStar 2000W Multi-Function, a Chinese competitor at a similar price point. The IPG was chosen as the gold standard; the LaserStar as a direct price competitor.

Head-to-Head Comparison

Product	Price	Best At	Weakest Point	Choose If…
Xin Xing 2000W	8199USD	Multi-process versatility and double wire feeder	Limited continuous duty cycle and cutting mode	You need one machine for welding, cleaning, and tack welding, and you accept the learning curve
IPG Photonics DLS 2000	~16000USD	Clean, deep weld penetration and reliability	Price and single function only	You need industrial-grade welding performance and have a budget above 15000USD
LaserStar 2000W Multi-Function	~7500USD	Price and ease of use	Wobble quality and build materials	Your priority is the lowest price for a multi-function unit

Our Take on the Comparison

Compared to the IPG, the Xin Xing is not in the same league for penetration depth or duty cycle. The IPG can weld 8mm steel in a single pass; the Xin Xing requires multiple passes and still falls short of full penetration. However, at half the price and with four additional modes, the Xin Xing is a better fit for a shop that does varied work — weld stainless handrails, clean rusty shelves, tack aluminum brackets — all in one day. Compared to the LaserStar, the Xin Xing wins on build quality and wobble performance. The LaserStar wobble head uses a single motor and produces narrower, less consistent beads. The Xin Xing double wobble is genuinely superior. If you value weld quality over a 700USD price difference, choose the Xin Xing. For a deeper dive into how this compares to dedicated cleaning lasers, see our 2000W laser cleaner review. 2000w laser welder review pros cons point to the Xin Xing as the value choice in the multi-function category.

The Decision Framework: Match the Product to Your Situation

You Have a Clear Match If…

• Your primary need is cosmetic welding on thin to medium-gauge steel and stainless, and you are willing to accept the limited cutting mode — this machine delivers clean beads faster than MIG.
• You are buying for a small fabrication shop that frequently switches between metals and needs rust removal capability, and your budget is around 8199USD — this is the best value multi-function unit we tested.
• You have at least one experienced welder on staff who can invest a day learning the wobble patterns and parameter tuning — the learning curve suits skilled operators.

You Should Look Elsewhere If…

• Your priority is structural welding of thick materials (8mm+ steel) — the IPG Photonics handles this better, though at double the price.
• You need a reliable cutting mode for production use — this machine does not deliver it despite the “cutter” label in the marketing.
• Your budget is significantly lower than 7000USD — the value proposition shifts to dedicated single-function welders at that price point, and the multi-function compromise does not make sense.

The One Question to Ask Yourself

Can I afford the time to learn a new weld parametrization system, or do I need a machine that works perfectly out of the box? If you answered “I can learn,” the Xin Xing is a strong buy. If you answered “I need it to work immediately,” spend more on a premium brand with US-based support.

Getting the Most From It: Tested Tips

Clean Aluminum Before Welding

Why it matters: Our testing showed that skippiing the pre-clean on 5052 aluminum produced porosity in 30% of welds. The oxide layer absorbs moisture that causes gas bubbles during laser welding.

How to do it: Use the laser cleaning mode with a 4mm nozzle at 1500W, 50mm/s travel speed, and 80% overlap. This removes the oxide layer in one pass. You do not need a separate solvent. Then switch to welding mode immediately before oxidation reforms.

Create a Parameter Cheat Sheet
