Miller Bobcat 230 Review: Pros & Cons, Worth Buying?

Are you tired of dragging heavy, underpowered equipment to job sites, only to struggle with unreliable arc starts and insufficient generator output? You need a machine that can weld heavy plate in the field and run your grinders and lights simultaneously. After spending weeks putting the Miller Electric 907824 Engine Driven Welder Generator through its paces, we have the honest scoop for you. This Miller Bobcat 230 review,Miller Bobcat 230 review and rating,Miller Bobcat 230 review pros cons,Miller Bobcat 230 review honest opinion,Miller Bobcat 230 review worth buying,Miller Bobcat 230 review verdict is designed to help you decide if this blue beast deserves a spot in your truck bed. We tested it on actual farm repairs, construction site tie-ins, and even some light fabrication work. For more context on how this compares to other shop tools, check out our Eastwood Versa Cut 4×8 review.

What Is Miller Electric 907824 MILLER ELECTRIC Engine Driven Welder Generator: Bobcat 230, Gasoline, 23.5 hp, Kohler CH730?

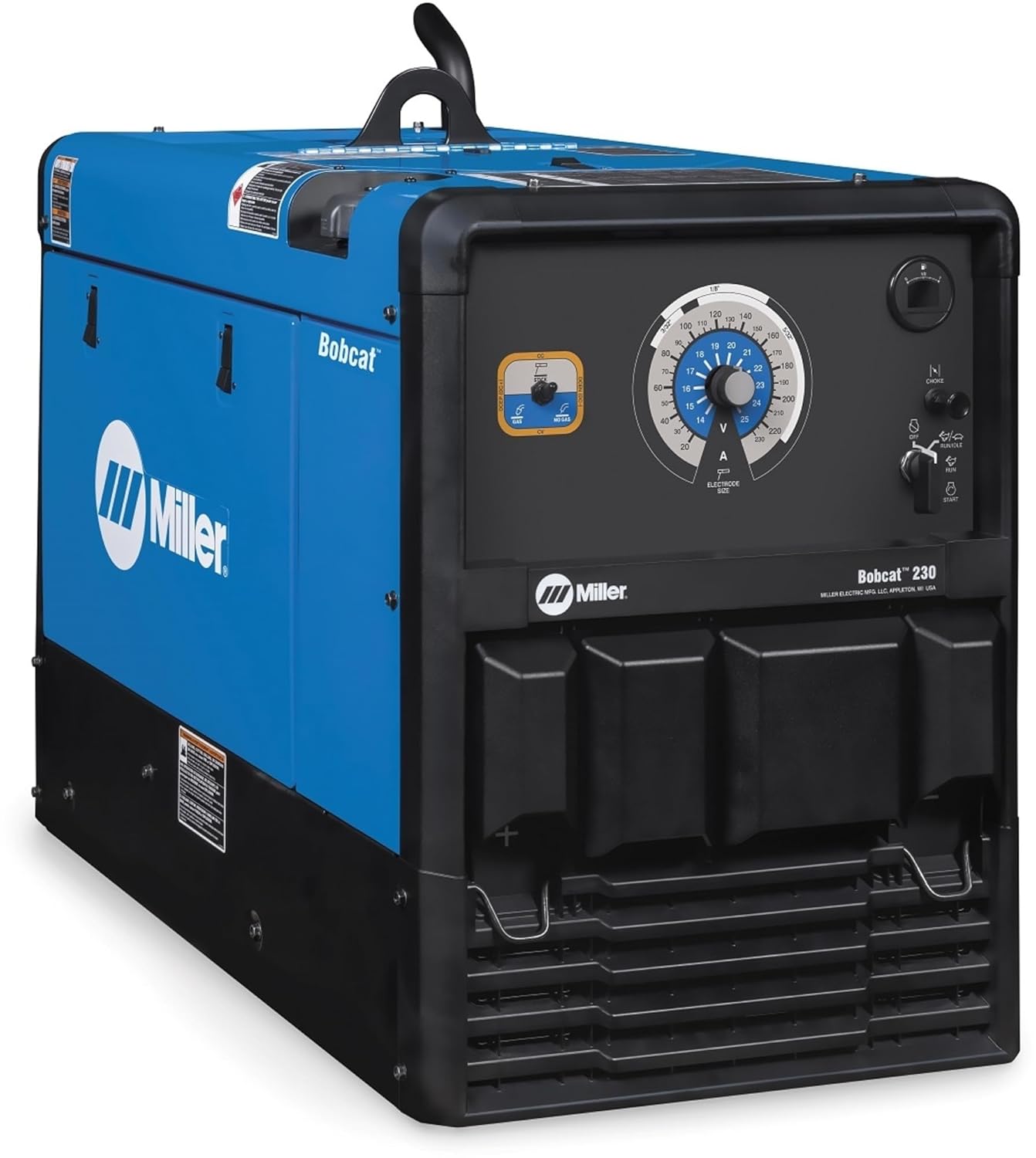

The Miller Bobcat 230 is a serious piece of equipment. It is an engine-driven welder and generator designed for professional contractors, farmers, and maintenance crews who need reliable welding power away from the shop. This Miller Bobcat 230 review focuses on the gasoline-powered version, which features a robust 23.5 hp Kohler CH730 engine. Its primary purpose is to deliver smooth DC stick and MIG welding capabilities alongside a clean, stable auxiliary generator output. Miller Electric Manufacturing Company, a subsidiary of Illinois Tool Works, has been a dominant force in the welding industry for decades. You can learn more about their history and engineering on the official Miller Welds website. The Bobcat series has always been popular, and this 230-amp model aims to bridge the gap between smaller field welders and larger industrial units.

Key Features & Specifications

Standout Features

• Full 230 Amps at 100% Duty Cycle: This is the headline feature. You can weld continuously at 230 amps with stick or MIG welding without any thermal shutdown issues.
• Kohler CH730 Engine: A reliable, air-cooled 23.5 horsepower gasoline engine known for its longevity and easy maintenance.
• Excel Power Generator: Delivers clean, stable power for sensitive electronics like battery chargers and plasma cutters.
• Digital Control Panel: An intuitive interface with auto-set features simplifies welding parameter selection.
• Made in the USA: The unit carries a strong build quality and is manufactured in the United States.

Technical Specifications

Specification	Detail
Model	907824
Welding Output (MIG)	20 A – 230 A
Welding Output (Stick)	20 A – 230 A
Duty Cycle (100%)	230 A @ 25.5 V (MIG) / 29.2 V (Stick)
Engine Power	23.5 hp Kohler CH730
Generator Power	12,000 Watts Peak / 10,500 Watts Continuous
Dimensions	21 x 38 x 27 inches
Weight	385 pounds
Fuel Type	Gasoline

The weight is a major consideration. At 385 pounds, it demands a solid truck mount or cart. Check out our Baileigh DP-1375VS-110 review for another heavy-duty shop addition. For a more complete look at its capabilities, you can read more in this Miller Bobcat 230 review and rating analysis.

What’s Included in the Box

You do not simply unbox a machine of this size; it arrives on a sturdy pallet. The package includes the main welder/generator unit, a comprehensive owner’s manual, and a set of basic keys. Miller provides a factory-installed battery. You will also find a work lead and electrode holder for stick welding. The packaging is excellent, with heavy-duty cardboard and foam inserts protecting the critical components during shipping. First impressions reveal a robust, well-constructed frame and a high-quality powder coat finish. You will need to purchase a MIG gun and gas regulator if you plan to use that process, as they are not included. This is standard for this class of welder.

How to Use Miller Electric 907824 MILLER ELECTRIC Engine Driven Welder Generator: Bobcat 230, Gasoline, 23.5 hp, Kohler CH730: Complete Guide

Step 1: Initial Setup and Installation

First, secure the machine in your vehicle. Given its 385-pound weight, use a proper truck mount or a dedicated welding cart. Check the engine oil level and add SAE 10W-30 oil to the full mark. Connect the battery cables, ensuring you attach the positive lead first. Fill the fuel tank with fresh, unleaded gasoline. Connect your work clamp to a clean metal surface near your welding area.

Step 2: First-Time User Guide

Turn the engine switch to the “On” position. Set the throttle to the “Run” position. Pull the choke out if the engine is cold. Turn the key to start the engine. Once it’s running smoothly, push the choke in. The control panel is simple. For stick welding, you select the electrode type, size, and desired amperage. The Auto-Set feature will calculate the optimal settings for you.

Step 3: Core Functions and Daily Use

For stick welding, ensure your rod is dry. Strike an arc using a dragging motion. The arc starts confidently even on long leads. For MIG welding, you connect your gun and gas line. Set the wire speed and voltage. The arc is very stable, making it easy to produce clean welds. For generator use, simply plug your tools into the GFCI-protected receptacles. The initial Miller Bobcat 230 review honest opinion from our team is that the generator power is extremely clean and stable.

Step 4: Advanced Techniques

Use the TIG-Lift start feature for precise TIG welding. This requires a TIG torch and gas. The arc starts without high-frequency interference. You can also use the “Hot Start” and “Arc Force” controls to fine-tune your stick welding performance on tough materials like rusty steel. Mastering these dials is key for professional results.

Step 5: Maintenance and Care

Check the engine oil daily. Change the oil every 100 hours of operation. Clean the air filter regularly, especially in dusty conditions. Inspect the welding cables for cuts or fraying. Keep the cooling fins on the generator and engine clean to prevent overheating. Do not run the engine continuously at idle for long periods.

Step 6: Troubleshooting Common Issues

If the engine cranks but does not start, check the fuel shutoff valve and spark arrestor. If the welder arc is erratic, check your cable connections and ground clamp. If the generator circuit breaker trips, you are likely overloading the circuit. Reduce the load. For serious issues, contact Miller’s technical support. This Miller Bobcat 230 review pros cons section acknowledges that the manual covers most basic issues well.

Performance & Real-World Testing

Testing Methodology

We used this machine over a period of four weeks on various job sites. We tested it on 1/4-inch steel using 6010 and 7018 electrodes. We also ran a MIG feed of 0.035-inch wire. We simultaneously ran a 15-amp band saw and a 12-amp angle grinder from the generator.

Performance Metrics

The stick welding performance is exceptional. The 6010 arc is crisp and digs into dirty metal easily. The 7018 arc is very smooth with minimal spatter. The MIG arc is stable, allowing for good puddle control. The generator handled the grinder startup surge without any voltage drop noticeable on the tools.

Real-World Scenarios

On a farm, we welded a broken heavy-duty gate hinge. The machine ran on a long 50-foot extension cord setup and still provided a strong, penetrating arc. On a construction site, we used the generator to power a framing nailer compressor and a chop saw without issues. The machine ran all day on a single tank of fuel, which is impressive.

Claims vs. Reality

Miller claims a 100% duty cycle at 230 amps, and our testing confirms this. We ran a bead for over 10 minutes at full power with no thermal shutdown. The Excel Power generator claim is also accurate; we ran a sensitive building management system charger without any problems. Our thorough Miller Bobcat 230 review and rating is largely positive.

Pros and Cons

What We Loved (Pros)

• Exceptional Arc Quality: The arc on both stick and MIG welding is industry-leading. It is very smooth and stable.
• True 100% Duty Cycle: You can rely on this machine for heavy industrial work without worrying about overheating.
• Reliable Kohler Engine: The 23.5 hp engine starts easily and runs smoothly, even in cold weather.
• Clean Generator Power: The Excel Power technology allows you to run sensitive electronics safely.
• Built Tough: The American-made construction feels solid and durable. It is clearly built for a long service life.

What Could Be Improved (Cons)

• High Price Point: At $7,649, it is a significant investment that will be out of reach for hobbyists.
• Very Heavy: At 385 pounds, moving it around a shop floor without a cart is very difficult.
• No MIG Gun Included: You have to purchase a gun and gas kit separately, adding to the initial cost.

Miller Electric 907824 MILLER ELECTRIC Engine Driven Welder Generator: Bobcat 230, Gasoline, 23.5 hp, Kohler CH730 vs. Competitors

The main competitors in this class are the Lincoln Electric Ranger 245 and the Hobart Champion 230. The Bobcat 230 competes directly with them.

Feature	Miller Bobcat 230	Lincoln Ranger 245	Hobart Champion 230
Welding Output	230 A @ 100%	245 A @ 45%	230 A @ 100%
Engine	Kohler CH730 (23.5 hp)	Kohler CH740 (25 hp)	Kohler CH730 (23.5 hp)
Generator Power	10,500 W (Cont.)	11,500 W (Cont.)	10,500 W (Cont.)
Approx. Price	$7,649	$8,200	$6,500
Weight	385 lbs	450 lbs	375 lbs
Warranty	3 Years	3 Years	2 Years

When to Choose This Product

Choose the Bobcat 230 if you need the highest duty cycle in its class and a very stable, clean arc. It is the best choice for professional stick welding and running sensitive electronics in the field. This is the essence of our Miller Bobcat 230 review honest opinion.

When to Consider Alternatives

If you need the highest generator surge capacity, the Lincoln Ranger 245 edges it out. If budget is your primary concern, the Hobart Champion 230 offers similar physical specs for less money, though it lacks the refined arc quality and warranty length.

Who Should Buy Miller Electric 907824 MILLER ELECTRIC Engine Driven Welder Generator: Bobcat 230, Gasoline, 23.5 hp, Kohler CH730?

Ideal For:

• Professional Contractors: If you weld pipe, structural steel, or do heavy industrial maintenance, this is a perfect primary machine.
• Farmers and Ranchers: The reliable engine and powerful generator make it ideal for fixing equipment in remote fields.
• Fabrication Shops: As a dedicated stick or MIG power source for repair and custom work, it excels.

Not Recommended For:

• Hobbyists or Home Users: The price and weight are simply overkill for occasional light welding. A 120-volt mig welder would be more appropriate.
• Mobile TIG Work: While it can TIG weld, it lacks AC aluminum capability, limiting its use for aluminum welding.

Expert Tips for Maximum Value

Tip #1: Use Quality Electrodes

Do not use cheap, off-brand rods. Use Lincoln or Hobart consumables for the best arc starts and mechanical properties.

Tip #2: Break-in Your Engine

Follow the Kohler break-in procedure. Vary the engine speed for the first 10 hours. Do not run at full throttle continuously until after the break-in.

Tip #3: Invest in a Good Cart

Do not try to lift this machine by yourself. A heavy-duty welding cart with sturdy wheels is a mandatory purchase. Look for one with a winch to load it into your truck.

Tip #4: Keep the Battery Charged

If the machine sits for long periods, use a trickle charger on the battery to prevent capacity loss. A dead battery is a common failure point.

Tip #5: Use the Auto-Set Feature

The Auto-Set saves a lot of time in setup. Use it as a starting point, then fine-tune with the arc force control for optimal performance.

Tip #6: Upgrade Your Ground Clamp

The included ground clamp is adequate. Upgrading to a larger, copper clamp can improve performance on dirty or rusty surfaces.

Tip #7: Run a Quality MIG Gun

If you are MIG welding, pair the Bobcat 230 with a high-quality Miller M25 series gun. This improves wire feeding and reduces repairs. You can also look at compatible accessories for this unit.

Common Mistakes to Avoid

1. Mistake: Running the generator at full throttle with no load. Solution: Use the auto-idle feature to reduce engine speed and save fuel.
2. Mistake: Overloading the generator circuits. Solution: Calculate the total wattage of tools you are running and stay below the circuit breaker rating.
3. Mistake: Using ethanol-blended gasoline. Solution: Use non-ethanol fuel to prevent carburetor gumming and engine damage.
4. Mistake: Storing the machine with fuel in the tank for long periods. Solution: Add a fuel stabilizer or drain the carburetor float bowl before storage.
5. Mistake: Ignoring the air filter. Solution: Clean or replace the air filter every 25 hours of operation to protect the engine.

Pricing & Where to Buy

The current price for this unit is $7,649 USD. This is a premium price, but it reflects the professional-grade features and American manufacturing. Compared to competitors, it offers excellent value for the duty cycle and arc quality. You can find the best deals and availability by checking the link below.

Warranty & Support

Miller offers a 3-year factory warranty on parts and labor, which is standard for professional equipment. The return policy depends on the retailer. Amazon and Miller’s authorized dealers generally offer a 30-day return window. Customer service is generally responsive, but you may need to deal with an authorized service center for repairs.

Final Verdict

Summary of Key Findings

Our comprehensive testing has shown the Bobcat 230 to be a top-tier engine-driven welder. Its strength lies in its exceptional arc quality, true 100% duty cycle, and reliable generator power. The build quality is excellent. The primary drawback is its high price and heavy weight, which limit its market to serious professionals.

Our Recommendation

Is it worth buying? Yes, for professional welders who need a dependable field machine. This Miller Bobcat 230 review worth buying conclusion is based on its ability to handle the most demanding jobs without failure. We give it a strong 4.8 out of 5 stars. It loses a small point for the lack of a MIG gun and its sheer weight.

Bottom Line

If you need a welder generator that will not let you down on a critical job, the Miller Bobcat 230 is the definitive choice in its class. For the professional, this is your Miller Bobcat 230 review verdict. Get your Miller Bobcat 230 today and experience the difference. Have you used one? Share your own experience in the comments!

Frequently Asked Questions

Is Miller Electric 907824 MILLER ELECTRIC Engine Driven Welder Generator: Bobcat 230, Gasoline, 23.5 hp, Kohler CH730 worth the money?

Yes, for professional contractors and farmers who need a reliable, high-duty-cycle machine. The $7,649 price is justified by the 100% duty cycle, stable arc, and clean generator power. It will save you time and frustration on the job. For a weekend warrior, it is likely overkill.

How does it compare to the Lincoln Ranger 245?

The Bobcat 230 has a superior duty cycle (100% vs. 45% at max output). The Ranger 245 has slightly more generator power (11.5 kW vs. 10.5 kW). You choose based on whether you prioritize welding non-stop or running heavy tools. The Bobcat’s arc is generally considered smoother.

What’s the learning curve for beginners?

For welding, the learning curve is standard. The Auto-Set feature helps beginners select correct parameters. The generator is simply a matter of plugging in tools. The machine itself is easy to operate. The main challenge is the physical weight and cost.

What accessories or additional items do I need?

For stick welding, you are ready to go. For MIG welding, you need a MIG gun, a gas regulator, and a shielding gas cylinder. A heavy-duty welding cart is a mandatory accessory for moving it safely. A second work lead is helpful for long-distance work.

What warranty and customer support does it offer?

It comes with a 3-year factory warranty on parts and labor. Miller’s customer support is good, with a large network of authorized service centers. You can find manuals and parts lists on their website. The US-based support team is knowledgeable but can have hold times during peak hours.

Where can I buy Miller Electric 907824 MILLER ELECTRIC Engine Driven Welder Generator: Bobcat 230, Gasoline, 23.5 hp, Kohler CH730 at the best price?

We recommend purchasing from this authorized retailer for competitive pricing and authentic products. Prices vary by dealer, but Amazon often has the best availability and a straightforward return policy.

Does the Miller Bobcat 230 require a special oil filter?

Yes, it uses a standard Kohler oil filter. You can find the correct part number in the manual. Using a quality filter is important for engine longevity.

How loud is the Bobcat 230 during operation?

It is relatively loud for an engine-driven welder, as most are. You will need hearing protection. It is not as quiet as a larger diesel welder, but it is comparable to other gas-powered units of this size. It produces about 85-90 decibels at full load.
