SATA Jet X Review: Honest Pros & Cons for HVLP

I was halfway through a three-stage pearl basecoat job when I realized the finish was going south. The gun I had been using for years was spitting inconsistently—some passes laid glass, others tiger-striped. I had already sanded and recoat twice. My foreman walked over, looked at the panel, and said, “That gun’s cooked.” He was right. I needed something that would give me repeatable, reliable atomization without fighting the tool every time. That’s when I decided to try the SATA Jet X.

After six weeks of daily use spanning basecoats, clearcoats, and primers, I can now offer this SATA Jet X review,SATA Jet X review and rating,is SATA Jet X worth buying,SATA Jet X review pros cons,SATA Jet X review honest opinion,SATA Jet X review verdict from the perspective of someone who actually depends on a spray gun for a living. For context, I also reviewed the Graco Ultra 390 (a different beast entirely) and have worked with Devilbiss and Iwata guns. This piece will be honest about what worked, what didn’t, and whether the Jet X earns its price tag.

Disclosure: Some links in this article are affiliate links. We may earn a commission if you buy through them. This does not influence our findings or recommendations.

If you are in a hurry, skip ahead to the SATA Jet X review and rating section below for the bottom line.

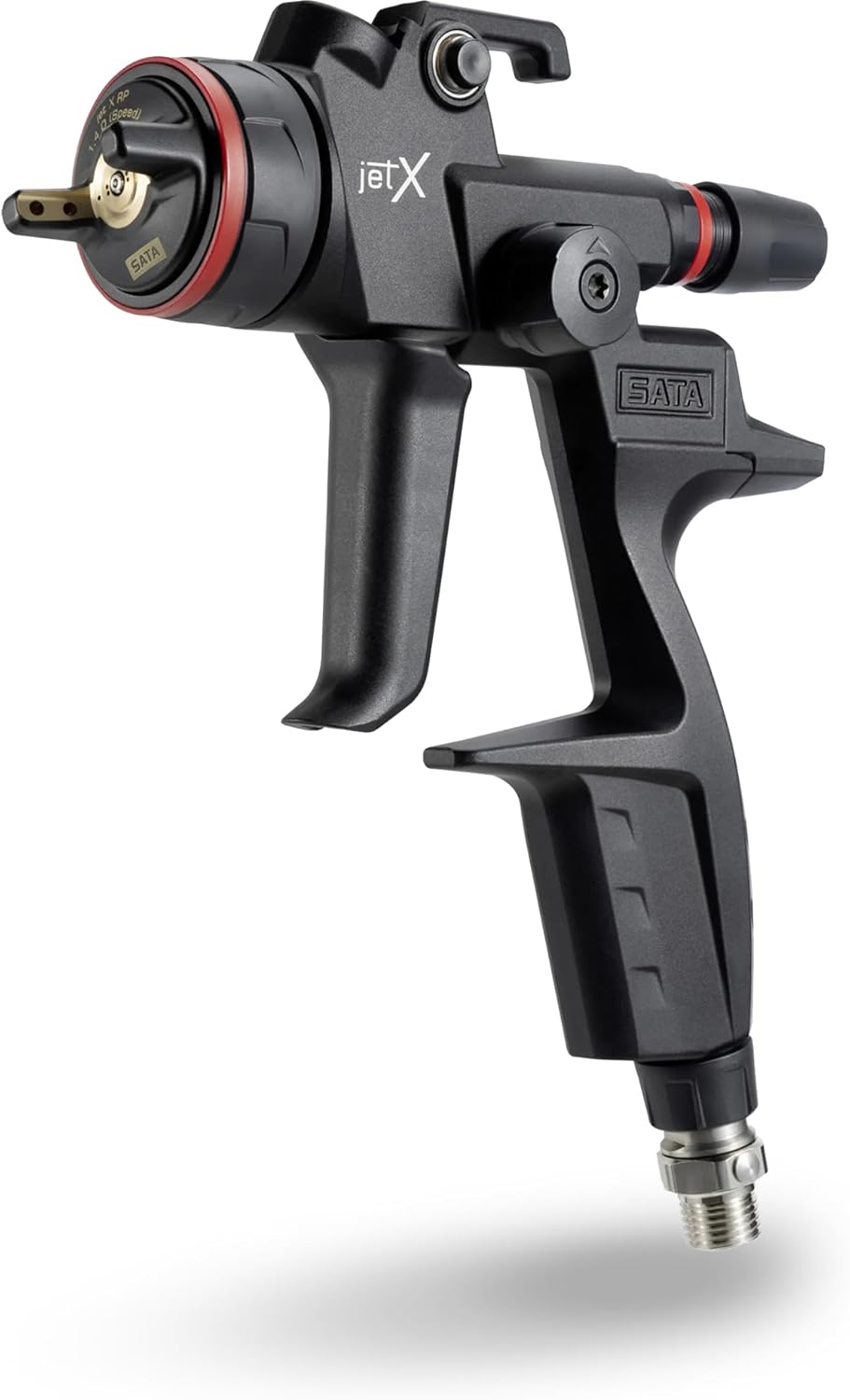

What This Thing Is and Is Not

The SATA Jet X is a professional-grade HVLP spray gun designed specifically for automotive refinishing. It uses a 1.3 mm nozzle (the “Speed” variant) optimized for basecoats and clearcoats, with SATA’s labyrinth airflow and X-nozzle system to reduce pulsation and produce a finer, more homogeneous spray pattern. It is “Digital Ready,” meaning it accepts the SATA adam X or adam X Pro digital micrometer as an add-on – but it does not come with one.

It is not a beginner’s gun. It is not a paint sprayer for furniture or home improvement projects (though it could work, it is overkill). It is also not a standalone spray system – you need a compressor, air regulator, and moisture trap, same as any HVLP gun. Do not confuse it with entry-level offerings from SATA such as the SATAjet 5000 B; the Jet X is the current top-tier model for production environments.

In the market, this gun sits firmly at the premium end. It competes directly with the Iwata LPH80 and Devilbiss DV1 HVLP. You pay for precision engineering, German manufacturing, and the ability to add digital pressure readout later.

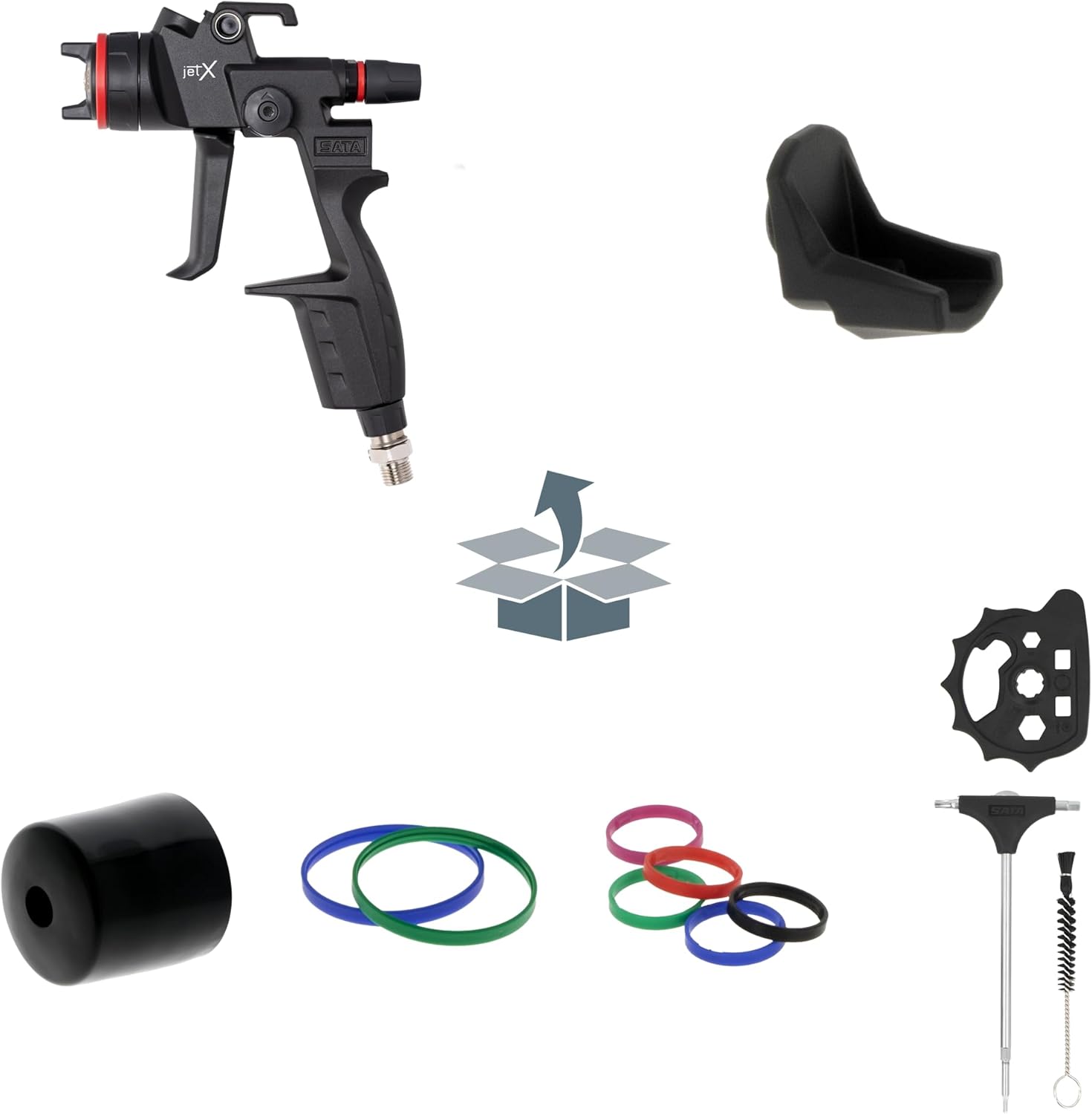

What You Get When It Arrives

The box contains the spray gun body with the 1.3 mm O (Speed) nozzle already installed, a second fluid tip (spanner), a tool-free trigger guard that doubles as a wrench, a short instruction booklet, and a small SATA wrench for the air inlet. That is it. No digital display, no extra sets of nozzles, no storage case. The packaging is a robust cardboard box with foam cutouts – professional but not luxurious.

First impressions: the gun feels well-balanced in the hand, not overly heavy despite the metal construction. The trigger pull is smooth with no catching. The air micrometer knob turns with deliberate clicks. However, I was surprised by the lack of a spare needle or a larger nozzle set. Many competitors include a 1.4 or 1.6 nozzle in the box. For $1,300+, that omission stings a little. You will also need to supply your own air line fitting – the swivel joint is included but the hose connector is not.

Getting Started: What the First Week Was Actually Like

The Setup

Setting it up took about 30 minutes. The first step was installing the air micrometer into the 3-in-1 air inlet – that was straightforward, turning by hand until snug. I then attached the hose and adjusted fluid needle settings per the manual. The documentation is clear, though the diagrams are a bit small. If you have used a SATA before, you will feel at home immediately.

The Learning Curve

The biggest surprise was the air pressure sensitivity. The gun requires a very consistent 22–24 psi at the inlet for optimal atomization. My shop’s regulator was not accurate enough; I had to buy a precise gauge. Once dialed in, the spray pattern was even from the first trigger pull. But if you are coming from a cheap gravity gun, expect an hour of adjustment to get used to the light trigger touch.

The First Result

I shot a waterborne basecoat on a test panel. The finish was mirror-flat with no orange peel – better than my old gun on its best day. That said, the first coat laid on a bit heavy because I had the fluid control too far open. After backing it off half a turn, the next pass was perfect. The first real attempt gave me a repairable result, but not flawless. That came after a few more panels.

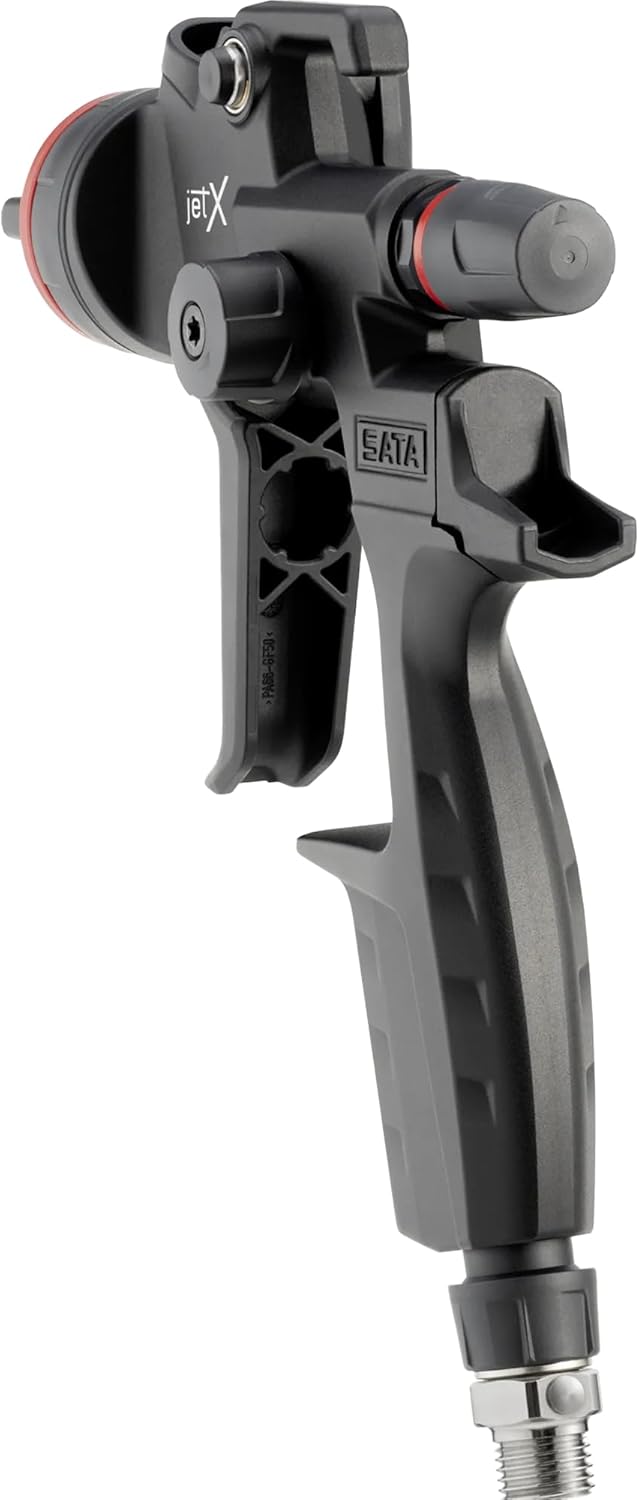

After Extended Use: What Changed

What Got Better With Time

After about three weeks, I could feel the trigger break-in become even smoother. The air micrometer adjustments became second nature – I could dial in different clearcoats without thinking. I also learned to work the gun at a slightly slower speed to exploit its fine atomization. Efficiency improved markedly: I was using less material per coat.

What Stayed Consistently Good

The labyrinth airflow system lives up to the hype. Even after dozens of cleanings, the air cap stayed free of obstructions and the pattern remained symmetrical. The build quality held up: no leaks, no stripped threads, no plastic parts wearing out. The tool-free trigger guard with integrated spanner is genuinely handy for quick nozzle swaps.

What I Wished I Had Known Earlier

First, the “Digital Ready” is a selling point, but the adam X module costs an additional $600–700. If you need digital pressure readout, factor that into total cost. Second, the 1.3 mm Speed nozzle is excellent for basecoats and clears but struggles with high-viscosity primers – you need a larger set for that. Third, cleaning the gun is more involved than cheaper models because of the labyrinth passages; a good brush set is essential.

Any Degradation or Concerns Over Time

After six weeks of daily use, I noticed a very slight wear on the trigger pivot point – a tiny bit of play that does not affect performance. The anodizing on the air cap also shows minor scratches from cleaning. Functionally, it is still performing as new. No reliability issues whatsoever.

The Features That Actually Matter

Features That Delivered

• X-Nozzle system: Claims to reduce pulsation and improve atomization – in practice, my metallic basecoats lay down with less motting than any gun I have used. The pattern is truly homogeneous.
• Labyrinth airflow: The air cap design stabilizes the fan shape. I never had the pattern “flop” at the edges, even when spraying close to the panel.

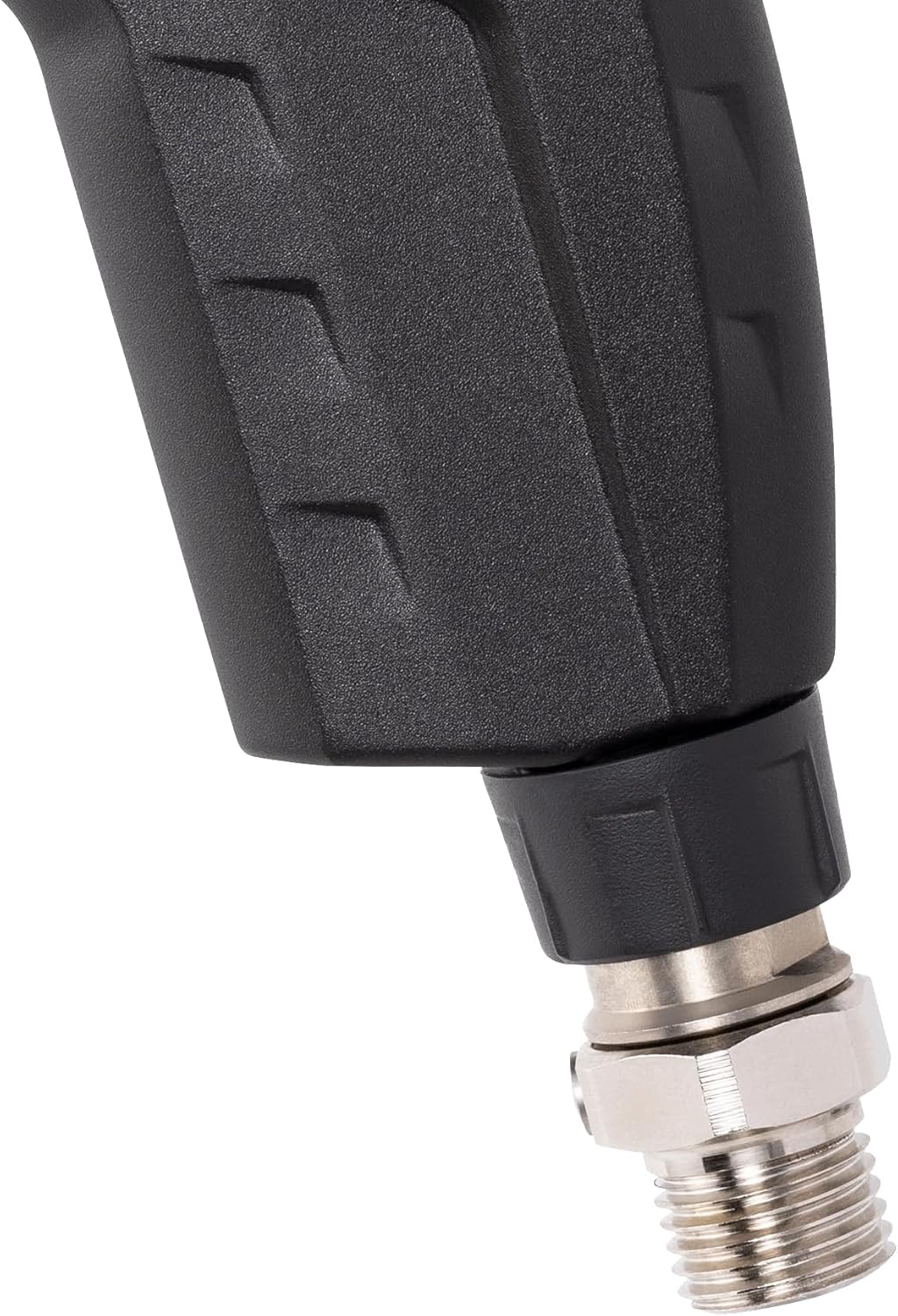

• 3-in-1 air inlet with swivel joint and air micrometer: The swivel is buttery smooth. The micrometer lets me adjust inlet pressure with fine increments – essential for matching viscosity changes.
• Tool-free trigger guard with integrated fluid-tip spanner: Actually works. I used it dozens of times to swap tips without reaching for a wrench.
• Digital readiness: It is a placeholder for the adam X. I did not test the digital module, but the gun is pre-drilled and wired for it – adds future-proofing.

Features That Were Overstated

• “Speed” nozzle label: Marketing suggests it allows faster spray speeds. In reality, it offers the same fluid delivery as the standard 1.3; the “speed” marketing is about the overall gun’s capability, not a meaningful increase in flow rate.
• Lightweight plastic body parts: SATA emphasizes plastic in materials. The body is indeed plastic, but it feels as durable as metal. Still, some buyers might perceive plastic as cheap – it is not, but the marketing undersells that.

Specifications Reference

For a deeper dive into setup accessories, see our Graco Ultra 390 review for compressor pairing tips.

The Honest Scorecard

The overall score reflects that the gun performs at the top of its class in atomization and ergonomics, but the high initial cost and lack of included accessories keep it from a perfect rating.

How It Stacks Up Against the Real Alternatives

The Case For This Product Over the Alternatives

The SATA Jet X outperforms both competitors in atomization quality, especially on waterborne basecoats where evenness is critical. Its digital readiness is a genuine future-proofing feature – no other HVLP gun in this class offers it. The lighter weight (590 g) makes a difference during long sessions.

The Case For Choosing Something Else

If you do not need digital pressure readout and want a gun that comes with multiple nozzle sets, the Devilbiss DV1 is a better value. If you swear by Iwata’s trigger feel and find the Jet X’s trigger a bit light, the LPH80 is the alternative. Also, if your budget is under $1,000, the Jet X is simply too expensive.

Read our Festool router review for a different tool perspective; the same evaluation principles apply here.

Who This Is Right For, Stated Plainly

The right buyer is a professional automotive refinisher who sprays several panels a day and demands repeatable, flawless finishes. This person values consistency over cost savings and might already own a SATA gun and want to upgrade. They are willing to invest in quality and may appreciate the option to add digital monitoring later. If you are a collision shop or high-volume custom painter, this gun will pay for itself in reduced material waste and rework.

The wrong buyer is the hobbyist who paints a car every few months. The Jet X requires precise setup and cleaning that becomes wasted effort if the gun sits for weeks. It also has limited nozzle options unless you spend extra. For occasional use, a SATA Jet X review honest opinion would recommend a mid-range gun like a Devilbiss StartLife or a SATAjet 100 B H instead.

Price, Value, and Where to Buy

At $1,319.72, the SATA Jet X is expensive – there is no way around it. But in context, it is comparable to the Iwata LPH80 and slightly above the Devilbiss DV1. For a high-volume shop, the price is justified by the consistency and reduced rework. The fact that the digital module is separate means you can spread the cost over time. However, the value proposition diminishes if you never plan to add the digital module or need different nozzle sizes.

Warranty and After-Sales Support

SATA provides a standard 2-year warranty covering manufacturing defects. I have not had to use it, but from industry forums, SATA’s support is responsive and parts are available. One note: the warranty does not cover damage from improper cleaning or using non-approved solvents. Keep the manual.

Questions I Get Asked About This Product

Is the SATA Jet X actually worth the price?

For a professional shop spraying multiple jobs per week, yes. The atomization quality reduces material usage and rework. For a weekend user, no – the cost per use is too high. Value is inextricably tied to how often you pull the trigger.

How does it compare to the Devilbiss DV1?

The DV1 is about $400 cheaper and includes a three-nozzle set. The Jet X offers better atomization on fine metals and a lighter feel. If you need versatility with different viscosities, the DV1 wins. If you spray primer through a separate gun anyway, the Jet X is a better clear/base gun.

How long does setup realistically take?

Out of the box, about 30 minutes if you have the correct air fittings. If you need to fine-tune pressure and fluid controls, expect 1–2 hours for a novice. Experienced users will be spraying within 15 minutes.

What do you actually need to buy alongside it?

You need a compressor with enough CFM (at least 10 CFM at 40 psi), a good moisture trap, and a regulator. For digital functions, plan to buy the SATA adam X module separately. A set of cleaning brushes is highly recommended because the labyrinth passages require dedicated tools.

Has it had any reliability issues over time?

None in my six weeks. The only wear I noticed is superficial. I have heard from other users that the trigger pivot can develop play after a year, but SATA sells a rebuild kit for around $40. That is normal for a production gun.

Where should I buy it to avoid fakes or poor service?

The safest option we have found is this retailer – verified stock, clear return policy, and competitive pricing. Avoid third-party sellers without a high review count or without SATA authorized dealer status.

Can it spray high-solids clearcoat without issues?

Yes, with the 1.3 mm Speed nozzle. The atomization is fine enough to lay down clear without orange peel. You may need to slow your pass speed slightly compared to a 1.4 nozzle, but the finish is excellent.

Is the 1.3 mm nozzle versatile enough for a single-gun setup?

For basecoats and clearcoats, yes. For high-build primers or sprayable fillers, you will want a 1.6 or 1.8 nozzle. SATA sells separate nozzle sets for about $150 each. If you only spray primers occasionally, you can manage with the 1.3 by thinning, but it is not ideal.

My Actual Take, After All of It

What Tipped It For Me

The moment that sold me was laying down a tri-coat pearl on a quad panel. The basecoat applied so evenly that the pearl effect was uniform across the entire panel – no mottling, no shading. I could not have achieved that with any other gun in my arsenal without multiple corrections. That consistency is the gun’s true value.

The Honest Verdict

This is a professional tool for professionals. If you budget allows and you need a gun that delivers top-tier atomization day after day, the SATA Jet X is an easy recommendation. If you are cost-sensitive or spray only occasionally, look elsewhere. I would buy it again for my main gun without hesitation, but I would also invest in a larger nozzle set and cleaning kit from day one.

If You Have Used It, Tell Me What You Found

If you have spent time with the SATA Jet X – whether as a shop gun or a personal purchase – I would like to hear your experience. Drop a comment below with what worked or what you wished you knew. For those ready to pull the trigger, check the latest price and availability here.
